Low Noise 12V DC Planetary Gear Motor
DC motors with planetary gearboxes provide an excellent solution when applications require low backlash, high torque and high efficiency. It provides a larger gear ratio and torque compared to spur gear motors of the same size.
For promotional purposes, SMM mainly offers 22mm planetary gear motors as its main product. In addition, the company has designed several types to meet the different requirements of this size.
If you have specific needs or special requests, please feel free to contact us. We also offer larger sizes including 28mm, 32mm and 36mm if required.
Features
2. The operating platform adopts a planetary reduction motor with low backlash, high efficiency, high input speed and high input torque.
3. The appearance and structural design are light and compact.
4. It can provide high rate output torque, but the cost is slightly higher.
5. Rated voltage 12V.

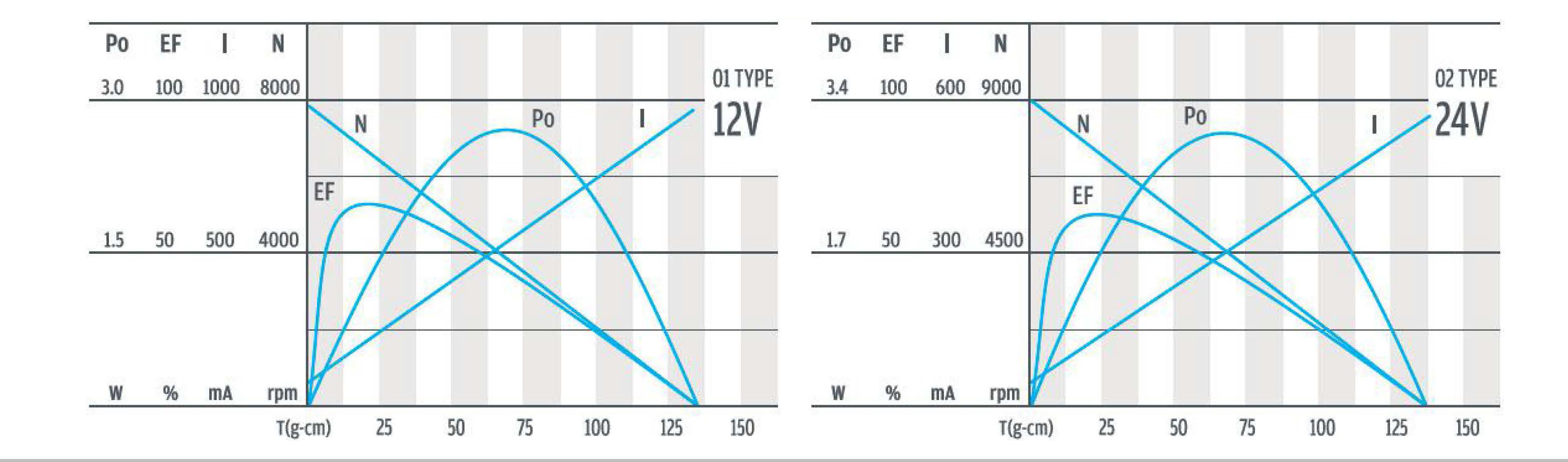

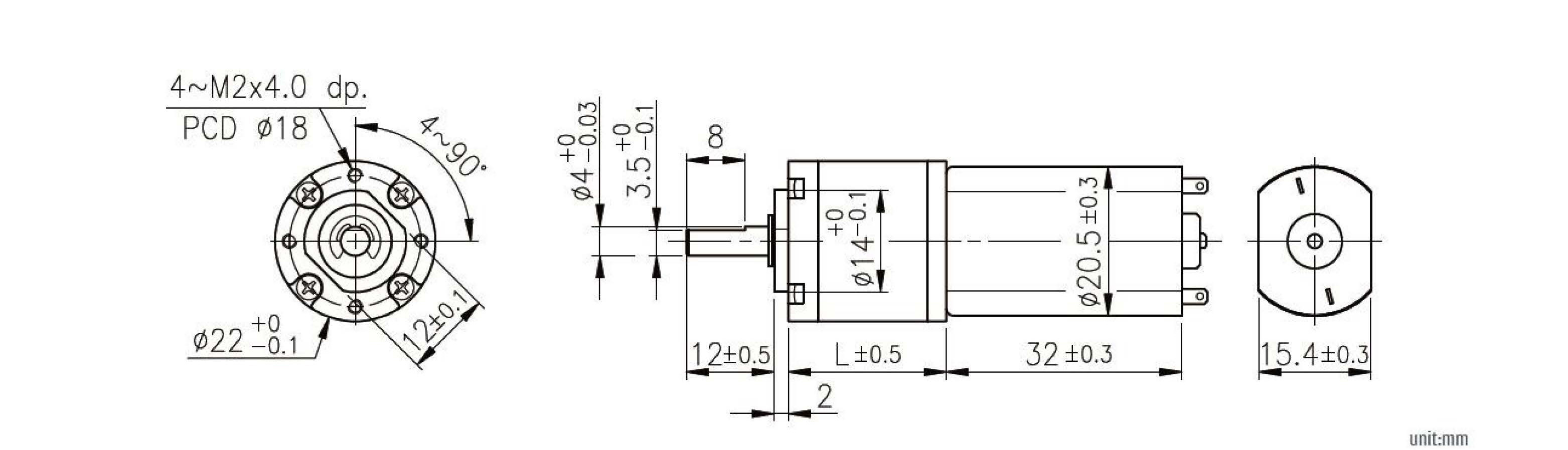

Appearance Dimension
| DC Motor + Gearbox Specifications | ||||||||||||||||||||
| Reduction ratio | 1/4 | 1/14 | 1/16 | 1/19 | 1/53 | 1/62 | 1/72 | 1/84 | 1/104 | 1/198 | 1/231 | 1/270 | 1/316 | 1/370 | 1/455 | 1/742 | 1/1014 | 1/1249 | 1/1621 | |
| 12V | Rated torque(g.cm) | 77 | 215 | 250 | 295 | 695 | 810 | 950 | 1100 | 1370 | 2100 | 2500 | 2500 | 2500 | 2500 | 2500 | 3000 | 3000 | 3000 | 3000 |
| Rated speed(rpm) | 1450 | 470 | 405 | 348 | 127 | 109 | 93 | 79 | 64 | 34 | 29 | 25 | 22 | 19 | 15.5 | 9.5 | 7.4 | 6 | 4.6 | |
| 24V | Rated torque(g.cm) | 77 | 215 | 250 | 295 | 695 | 810 | 950 | 1100 | 1370 | 2100 | 2500 | 2500 | 2500 | 2500 | 2500 | 3000 | 3000 | 3000 | 3000 |
| Rated speed(rpm) | 1600 | 515 | 450 | 384 | 140 | 120 | 103 | 88 | 71 | 37 | 32 | 28 | 23.5 | 21 | 17.5 | 10.5 | 8 | 6.6 | 5 | |
| Rotation direction | CCW | |||||||||||||||||||
| Length(mm) | 14.4 | 18.05 | 21.70 | 25.35 | 29.00 | |||||||||||||||
| DC Motor Specifications | ||||||
| Rated volt(V) | Rated torque(g.cm) | Rated speed(rpm) | Rated current(mA) | No load speed(rpm) | No load current(mA) | Weight(g) |
| 12 | 200 | 2000 | ≤1000 | 2800 | ≤350 | 145 |
| 24 | 250 | 3900 | ≤1230 | 5000 | ≤400 | 145 |
