Durability and long life 24V DC Planetary Gear Motor
As a gear motor manufacturer, we offer a wide range of motors with gearboxes. The 24V planetary gear motor manufactured by SMM is a 32mm DC motor paired with a planetary gearbox.
For planetary gearboxes, their efficient arrangement recycles any oil removed from the sun gear. Additionally, this arrangement facilitates the transmission of large amounts of power without damaging the gears.
Advantages
(1) Handle heavy loads at high speed.
(2) Provide consistent torque.
(3) Suitable for various applications such as robots, toys, parking barriers, wheelchairs, and electric vehicles.
(4)Encoder available.

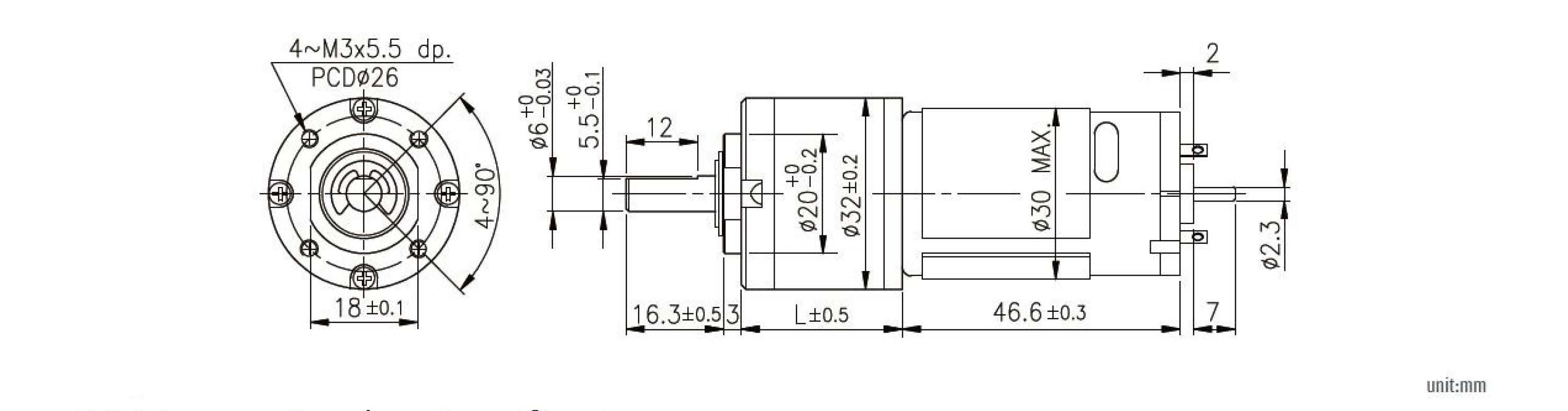

Appearance Dimension
DC Motor + Gearbox Specifications
| Reduction ratio | 1/5 | 1/14 | 1/19 | 1/27 | 1/35 | 1/51 | 1/71 | 1/100 | 1/139 | 1/189 | 1/264 | 1/516 | 1/721 | 1/939 | |
| 12V | Rated torque (Kg.cm) | 0.45 | 1.1 | 1.5 | 2.1 | 2.7 | 3.4 | 4.7 | 6.6 | 9.1 | 10 | 12 | 12 | 12 | 12 |
| Rated speed(rpm) | 1140 | 430 | 310 | 221 | 170 | 117 | 83 | 60 | 44 | 32 | 24 | 12.9 | 9.5 | 7.2 | |
| 24V | Rated torque (Kg.cm) | 0.54 | 1.2 | 1.7 | 2.4 | 3.1 | 4.0 | 5.5 | 7.8 | 10 | 12 | 12 | 12 | 12 | 12 |
| Rated speed(rpm) | 1170 | 445 | 320 | 229 | 176 | 121 | 87 | 62 | 45 | 34 | 25 | 13 | 9.6 | 7.2 | |
| Rotation direction | CCW | ||||||||||||||
| Length(mm) | 20.6 | 27.0 | 33.4 | 39.8 | |||||||||||

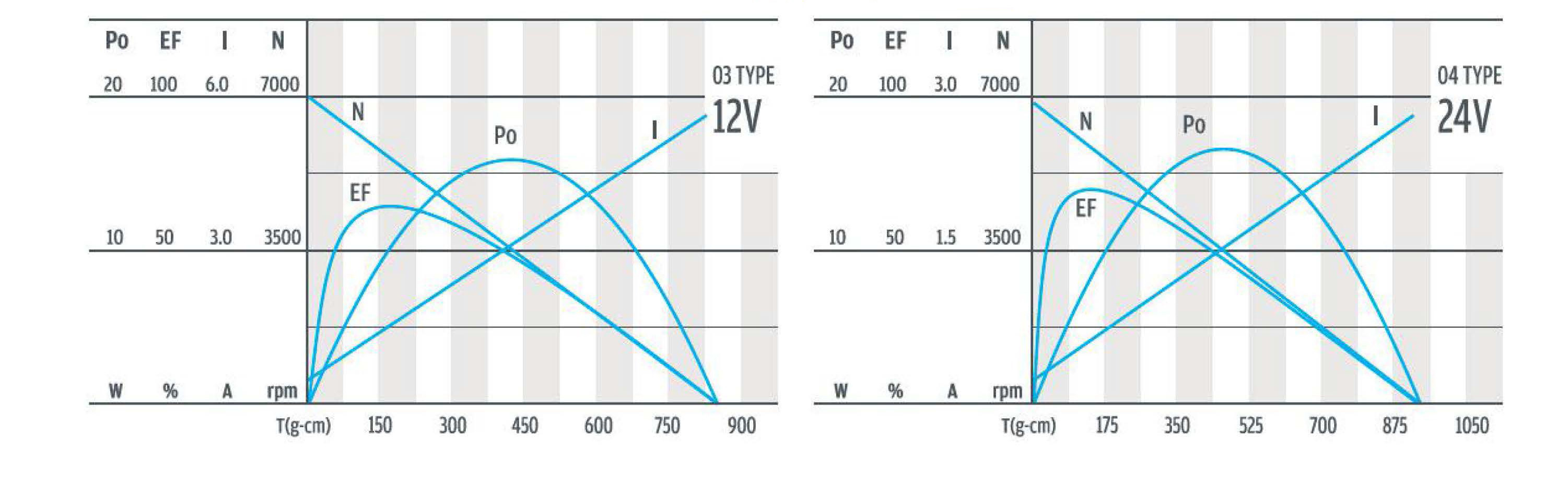

DC Motor Specifications
| Rated volt(V) | Rated torque(g.cm) | Rated speed(rpm) | Rated current(mA) | No load speed(rpm) | No load current(mA) | Weight(g) |
| 12 | 110 | 5950 | ≤900 | 7300 | ≤150 | 110 |
| 24 | 130 | 6160 | ≤500 | 7300 | ≤85 | 110 |
Manufacturing Plant
Top ten the first-class enterprises in China are equipped with the most advanced manufacturing, heat treatment and testing equipment, and employ more than 1,200 skilled employees. They have been credited with 31 breakthrough inventions and have been awarded 9 patents, solidifying their position as an industry leader.
Flow of Production
Inspection
We have invested in the latest cutting-edge testing equipment, including Brown & Sharpe measuring machines, Swedish Hexagon Coordinate Measuring Machine, German Mar High Precision Roughness Contour Integrated Machine, German Zeiss Coordinate Measuring Machine, German Klingberg Gear Measuring Instrument, German Profile Measuring Instrument and Japanese roughness testers etc. Our skilled technicians use this technology to perform accurate inspections and guarantee that every product that leaves our factory meets the highest standards of quality and precision. We are committed to exceeding your expectations every time.
Packages
Inner Package
Inner Package
Carton
Wooden Package
